MAIN BLOWER BELT PART NUMBERS FOR MILNOR DRYERS

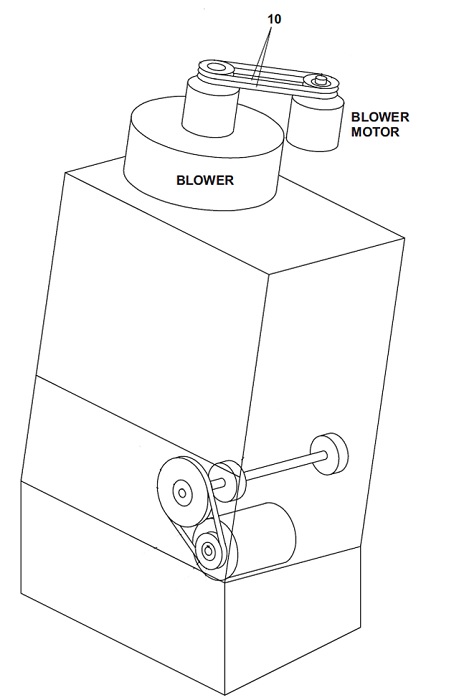

Main Blower belts for Milnor Dryers

Below is a list of Main Blower Belts used on Milnor Dryers
You can find your part number by searching for your model number.  The table below will have the part number.
Remember, some machines have configurations designed for specific customer needs.  Please compare the part number with the information found on your belt.
Also, some machines use different belts depending on the frequency of the AC power (50 and 60 hz) at the customer location. See notes below.

50040CS1 / 50040CT1 / 50040SA1 / 50040SB1 / 50040TG1 / 50040TS1 / 50040TT1 / 5040SA1L / 5040SA1R / 5040TG2L / 5040TG2R / 5040TS2L / 5040TS2R / 5050SA1L / 5050SA1R / 5050TG1L / 5050TG1R / 5050TS1L / 5050TS1R  / 58040CS1 / 58040CT1 / 58040SA1 / 58040SB1 / 58040TG2 / 58040TS1 / 58040TT1

50 Hz, 60 Hz

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB058X	VBELT BX58 DAYCO RAWEDGE COG	NEEDS 2 BELTS



58058CS1 / 58058CT1 / 58058SA1 / 58058SB1 / 58058TG2 / 58058TS1 / 58058TT1

50 Hz, 60 Hz

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB066X - 60hz 56VB071XM2-50hz	VBELT BX66  RAWEDGE COG, VBELT BX71  EA=1BELT	NEED 2 BELTS



58080CS1 / 58080CT1 / 58080SA1 / 58080SB1 / 58080TG1 / 58080TS1 / 58080TT1

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB075XM3	VBELT BX75  EA=1BELT	NEEDS 3 BELTS

6450TG1L / 6450TG1R / 6458TG1L / 6458TG1L / 6458TG1R / 6458TG1R / 6458TS1L / 6458TS1R / 6458TT1L / 6458TT1R / 6464TG1L / 6464TG1L / 6464TG1R / 6464TG1R / 6464TS1L / 6464TS1R

50 Hz, 60 Hz

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB078X - 50 Hz 56VB075XM3 - 60 Hz	VBELT BX78  RAWEDGE COG, VBELT BX75  EA=1BELT	BOTH FREQUENCIES NEED 3 BELTS



7272TG1L / 7272TG1R / 7272TS1L / 7272TS1R

50 Hz, 60Hz

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB085X -50 Hz 56VB083X - 60Hz	VBELT BX85  RAWEDGE COG, VBELT BX83  RAWEDGE COG	50 Hz uses 4 belts 60 Hz uses 3 belts





7676TG1L / 7676TG1R / 7676TS1L / 7676TS1R / 8282TG1L / 8282TG1R / 8282TS1L / 8282TS1R

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB083X	VBELT BX83  RAWEDGE COG	NEEDS 4 BELTS



MT140S1L / MT140S1R

50 Hz, 60 Hz (Import Models)

PART NUMBER	DESCRIPTION	ADDTIONAL INFO
56VB078X - 50Hz 56VB075XM3- 60Hz	VBELT BX78  RAWEDGE COG, VBELT BX75  EA=1BELT	NEED 3 BELTS
