Asco Valve Repair Parts and Repair Kits
A list of Asco Valves and the repair parts and kits associated with those valves. Pictures of valves and parts where available.

Differing styles of ASCO valves have different repair kits.  Parts like coils, washers, clips, and nameplates are shared over multiple styles of valves.  Below is a chart showing valve styles and the parts and kits needed for repair. Most of the differing styles come in 3 voltages, 24V, 120V, and 240V though, with the exception of the coil, the voltage does not change the kit part number or the repair part numbers.  The part numbers are links to part pictures.

VALVE PART NUMBERREPAIR KITCOILACCESSORIES
96TAC3AA24
96TAC3AA37
96TAC3AA71
96V304A
PARTKIT 8320 1/8" ASCO#K260767
96T1003A24
96T1003A37
96T1003A71
96V300GA
96V300GB
96TBC2AA24***
96TBC2AA37
96TBC2AA71
96V235F - Current H series
PARTKIT (NEW) 8262 "H"-SERIES 1/4" ASCO#323581
96V235E - Legacy G series
PARTKIT 8262 1/4" ASCO#K256513
96T1001A24
96T1001A37
96T1001A71
96V1001PLT
96V1001WSH
96V1001CLP
96TBC2BA37
96TBC2BA71
96V235F - Current H series
PARTKIT (NEW) 8262 "H"-SERIES 1/4" ASCO#323581
96T1001A24
96T1001A37
96T1001A71
96V1001PLT
96V1001WSH
96V1001CLP
96TBC3AA24
96TBC3AA37
96TBC3AA71
96V232
PARTKIT 8314 1/4" ASCO#K170979
96T1002A24
96T1002A37
96T1002A71
96V1002PLT
96V1002WSH
96V1002CLP
96TBC3BA24
96TBC3BA37
96TBC3BA71
96V236B
PARTKIT 8320 1/4 ASCO#K302142P
96T1002A24
96T1002A37
96T1002A71
96V1002PLT
96V1002WSH
96V1002CLP
96TCC2AA24
96TCC2AA37
96TCC2AA71
96V234
PARTKIT HV260153 ASCO#K260-766
96T2002A24
96T2002A37
96T2002A71
96V1002PLT
96V1002WSH
96V1002CLP
96TCC3AA24
96TCC3AA37
96TCC3AA71
96V235D
PARTKIT 8321 3/8" ASCO#K256512
No Photo Available
96T1001A24
96T1001A37
96T1001A71
96V1001PLT
96V1001WSH
96V1001CLP
96TDC2AA24
96TDC2AA37
96TDC2AA71
96V235B
PARTKIT 8210D2 ASCO#K258-120
96T1001A24
96T1001A37
96T1001A71
96V1001PLT
96V1001WSH
96V1001CLP
96TBO2AA7196V236A
PARTKIT 8262 1/4" ASCO#K302051
96T1002A7196V1002PLT
96V1002WSH
96V1002CLP
96TCC2BA37NO REPAIR KIT96T1001A3796V1001PLT
96V1001WSH
96V1001CLP
96TEO2AA37NO REPAIR KIT96T1002A3796V1002PLT
96V1002WSH
96V1002CLP

  *** See Additional Information on part number 96TBC2AA24 HERE

For limited availability legacy Asco repair kits, click HERE


VALVE PICTURES

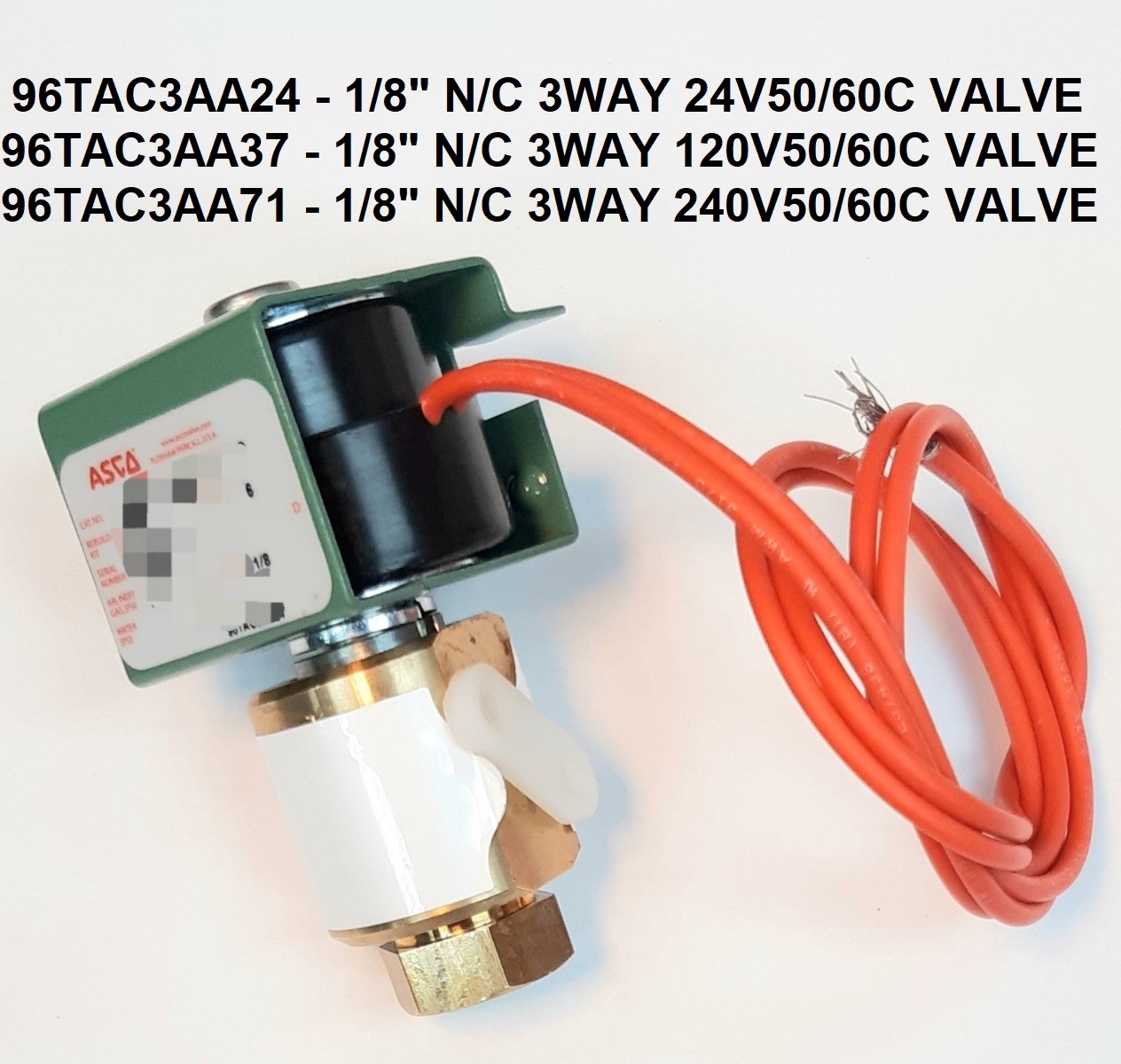

96TAC3AA24 / 96TAC3AA37 / 96TAC3AA71                              BACK TO CHART
96TAC3AA24 - 96TAC3AA37 - 96TAC3AA71

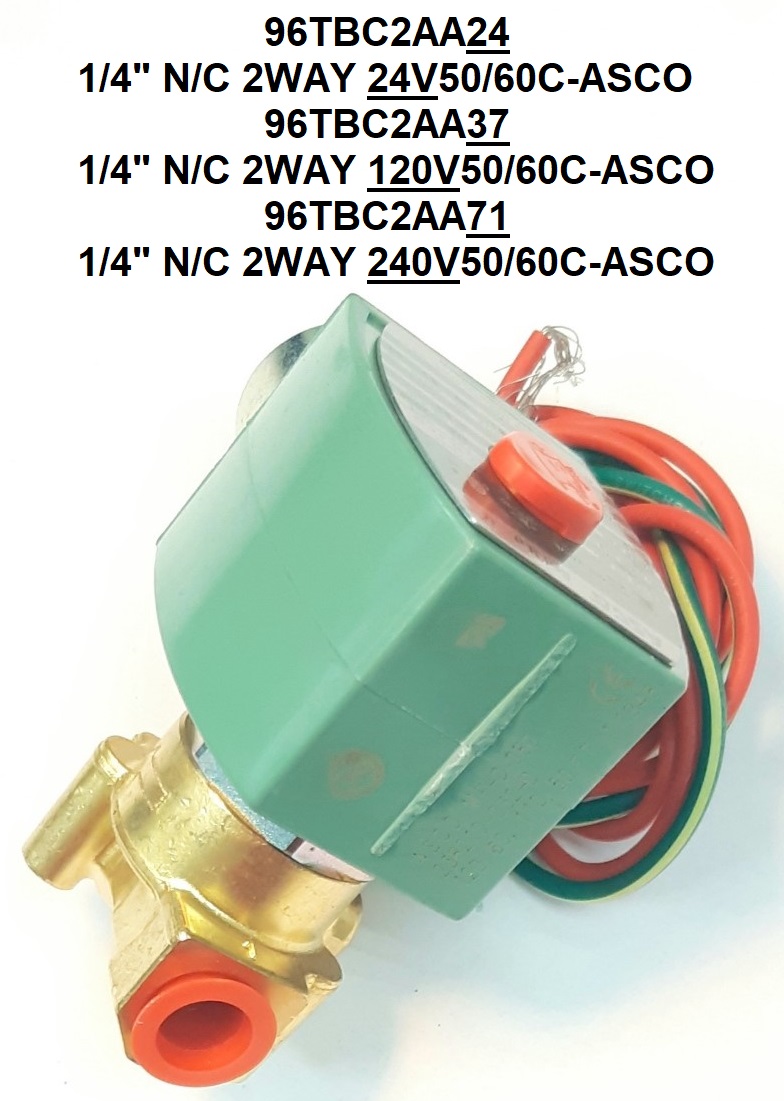

 96TBC2AA24 / 96TBC2AA37 / 96TBC2AA71                          BACK TO CHART
96TBC2AA24 - 96TBC2AA37 - 96TBC2AA71

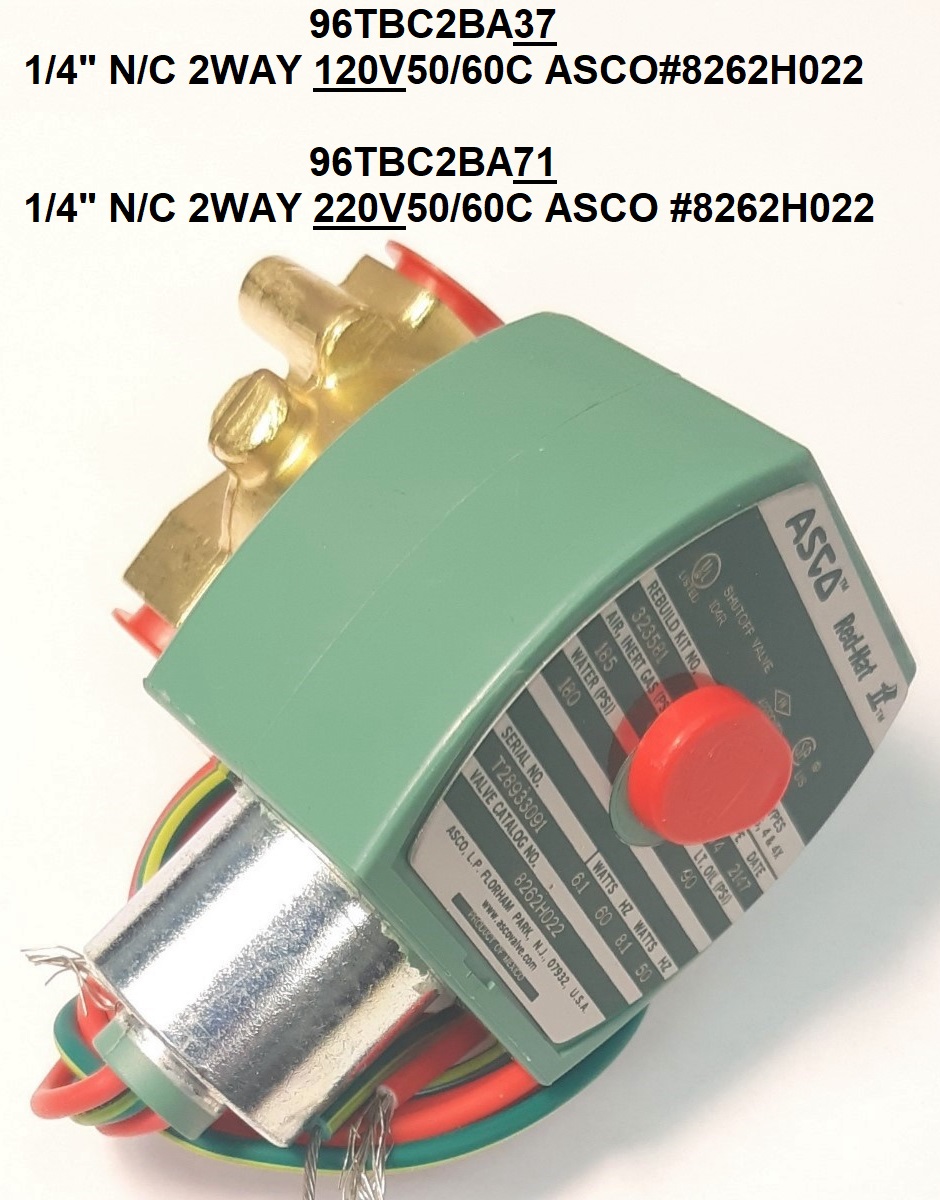

96TBC2BA37 / 96TBC2BA71                                                     BACK TO CHART
96TBC2BA37 - 96TBC2BA71

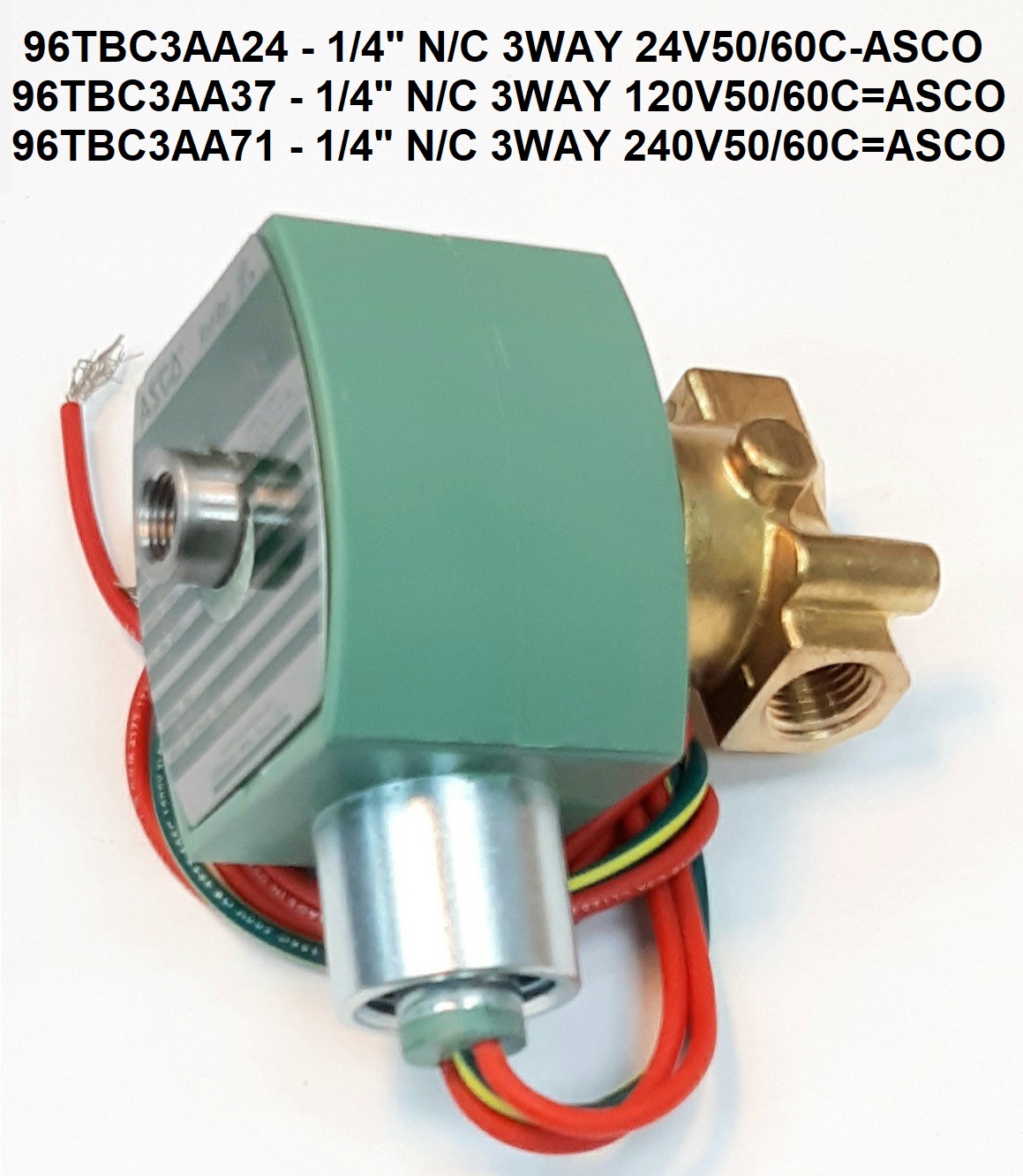

96TBC3AA24 / 96TBC3AA37 / 96TBC3AA71                              BACK TO CHART
96TBC3AA24 - 96TBC3AA37 - 96TBC3AA71




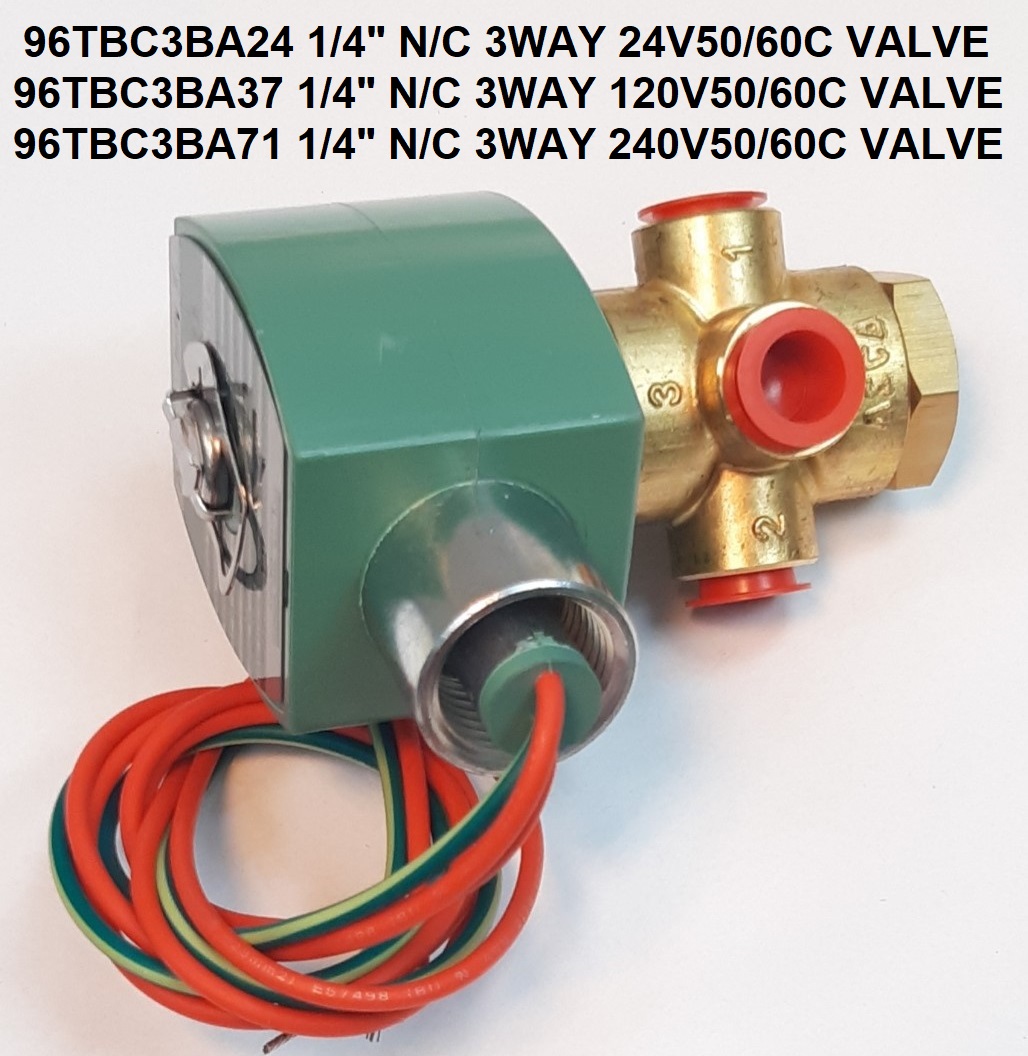

96TBC3BA24 / 96TBC3BA37 / 96TBC3BA71                              BACK TO CHART
96TBC3BA24 - 96TBC3BA37 - 96TBC3BA71

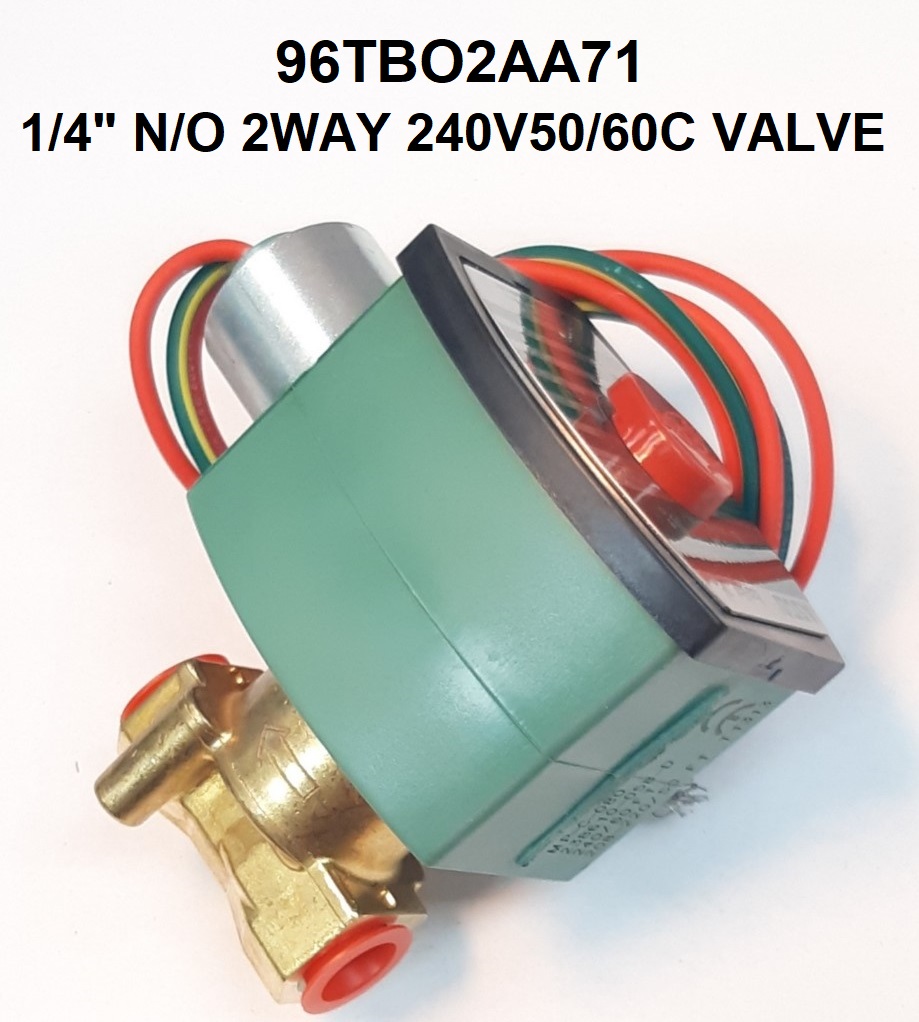

96TBO2AA71                                                                                  BACK TO CHART
96TBO2AA71

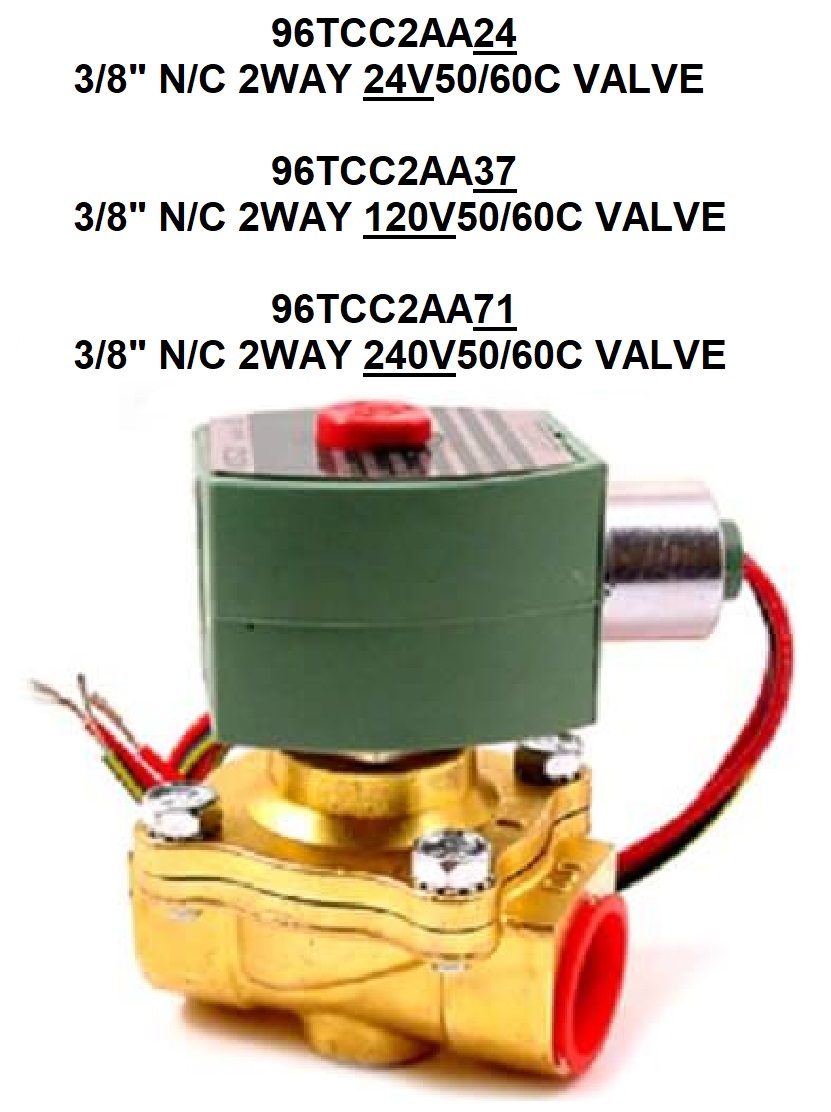

96TCC2AA24 / 96TCC2AA37 / 96TCC2AA71                                    BACK TO CHART
96TCC2AA24 - 96TCC2AA37 - 96TCC2AA71

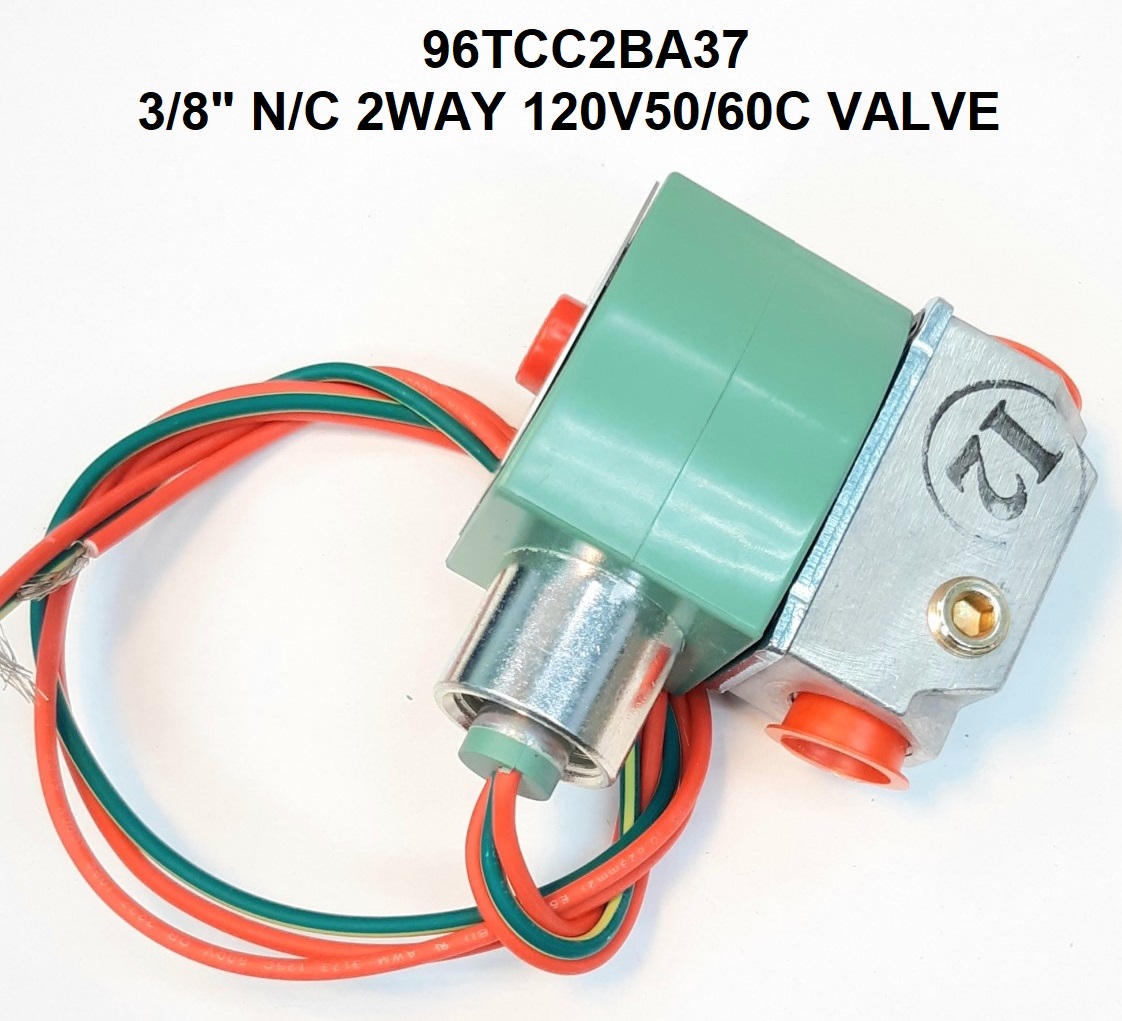

96TCC2BA37                                                BACK TO CHART
96TCC2BA37

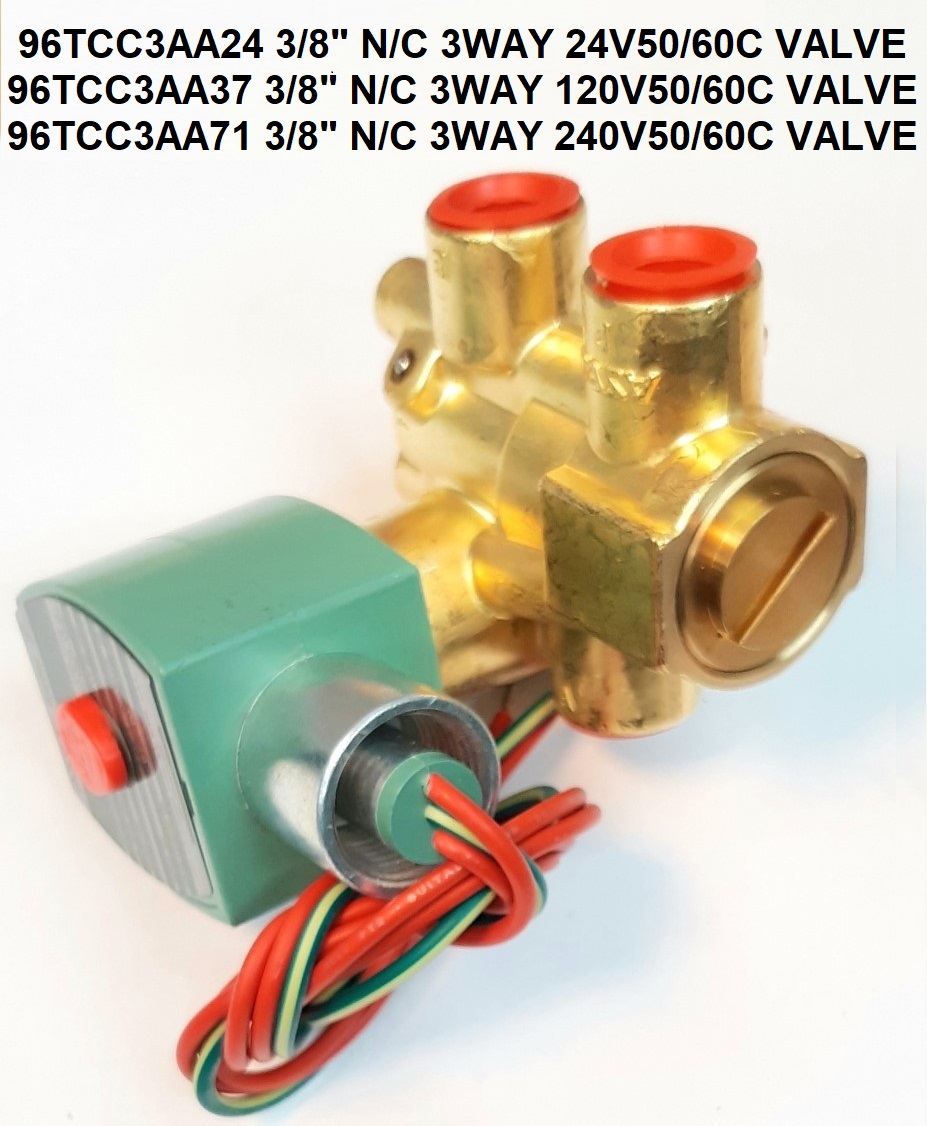

96TCC3AA24 / 96TCC3AA37 / 96TCC3AA71                                    BACK TO CHART
96TCC3AA24 - 96TCC3AA37 - 96TCC3AA71

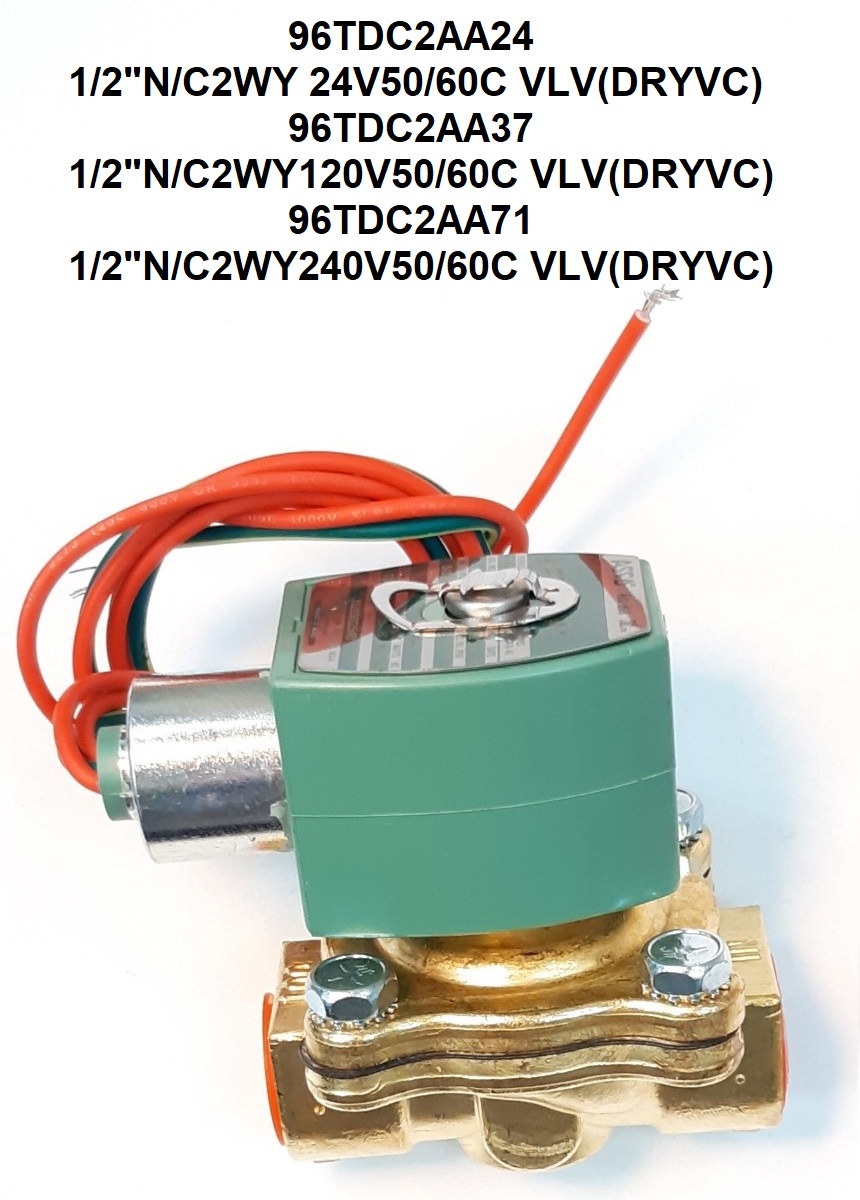

96TDC2AA24 - 96TDC2AA37 - 96TDC2AA71                                    BACK TO CHART
96TDC2AA24 - 96TDC2AA37 - 96TDC2AA71




96TEO2AA37                                                      BACK TO CHART
96TEO2AA37





COILS

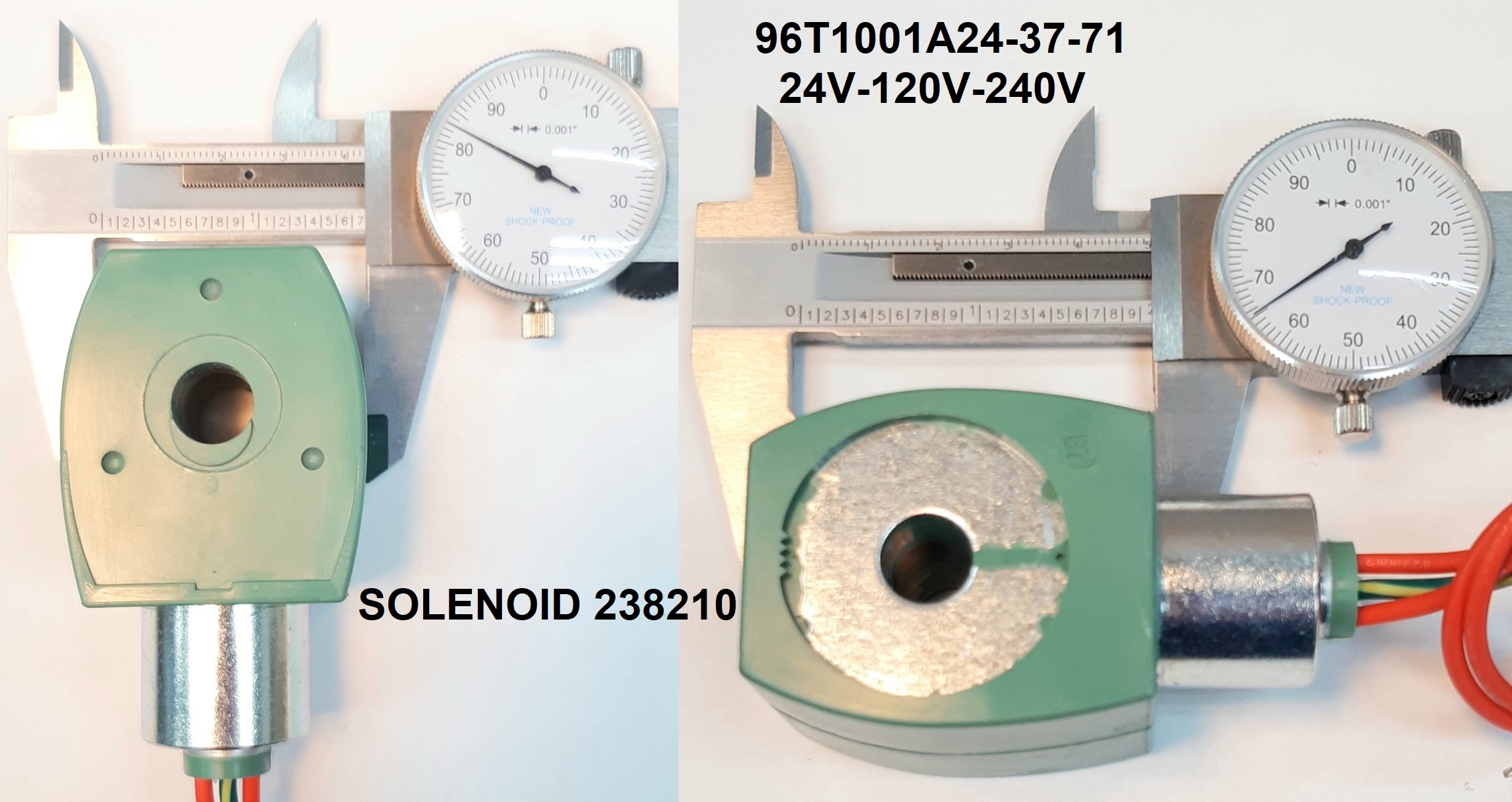

96T1001A24 / 96T1001A37 / 96T1001A71                                    BACK TO CHART
96T1001A24 - 96T1001A37 - 96T1001A71



96T1002A24 / 96T1002A37 / 96T1002A71                                    BACK TO CHART

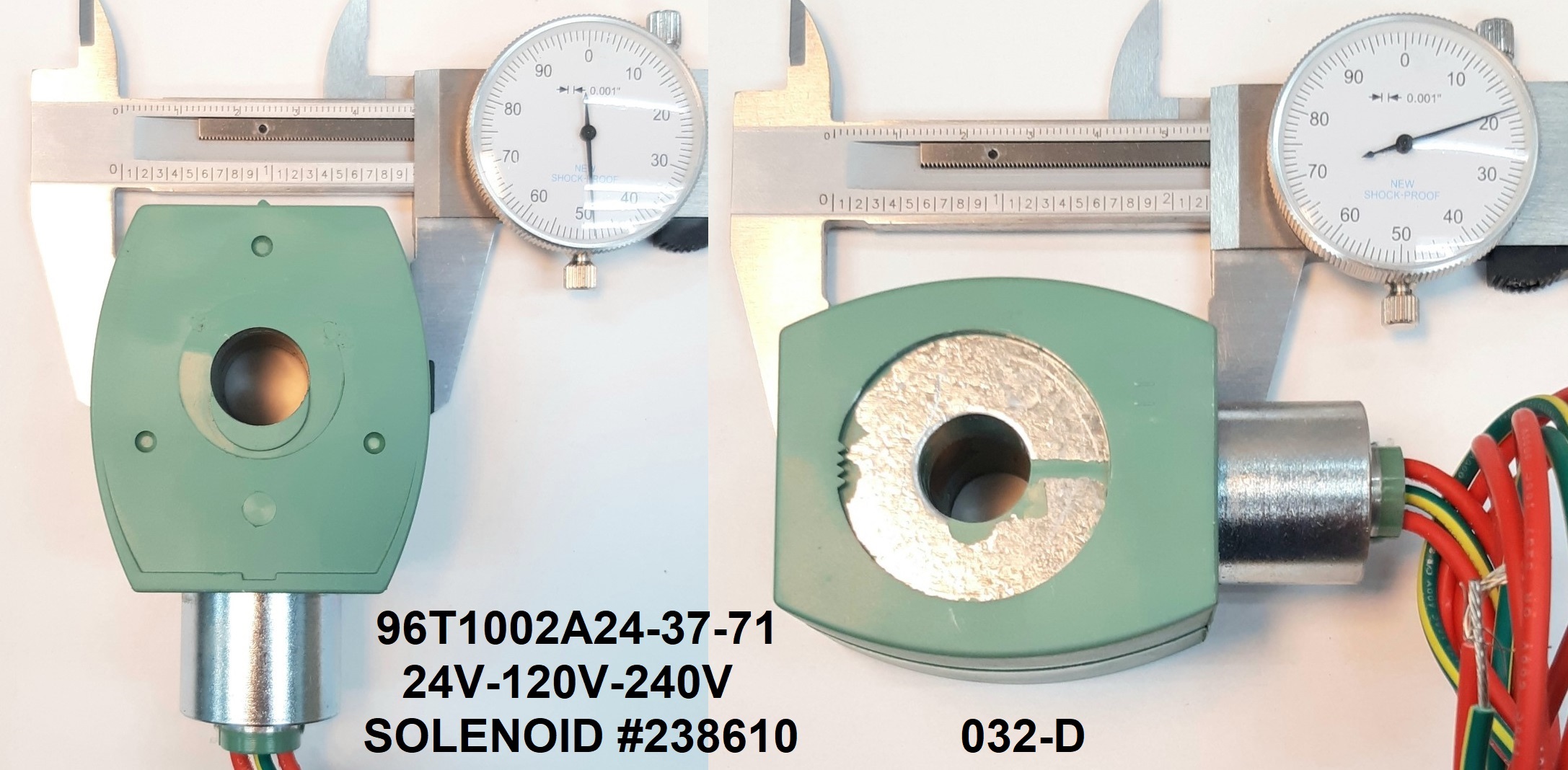

(NOTE: 96T1002A** and 96T2002A** have the same dimensions.  They are delineated by the numbers printed on the body "032-D" and "904-D" respectively)
96T1002A24 - 96T1002A37 - 96T1002A71

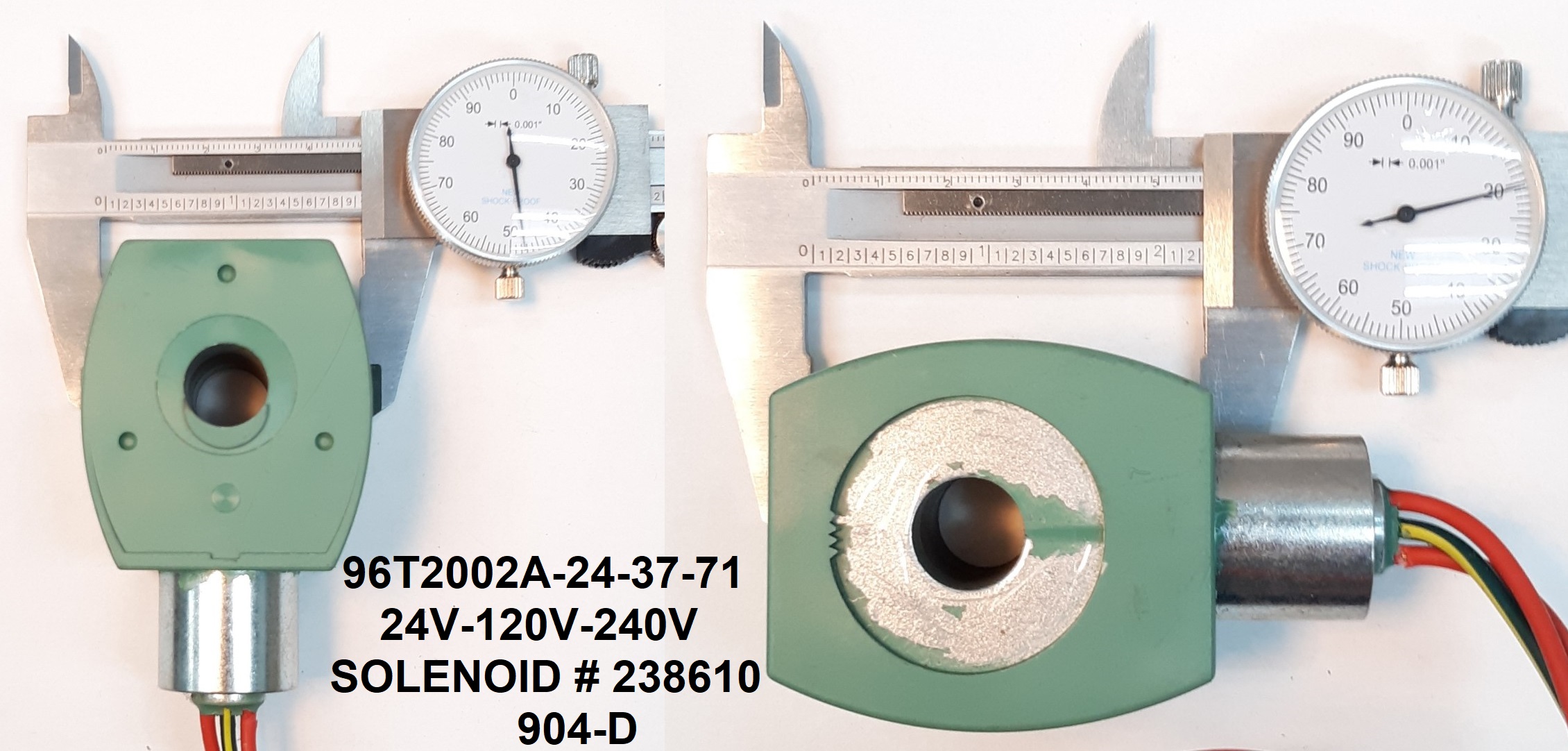

96T2002A24 / 96T2002A37 / 96T2002A71                                    BACK TO CHART
(NOTE: 96T1002A** and 96T2002A** have the same dimensions.  They are delineated by the numbers printed on the body "032-D" and "904-D" respectively)
96T2002A24 - 96T2002A37 - 96T2002A71

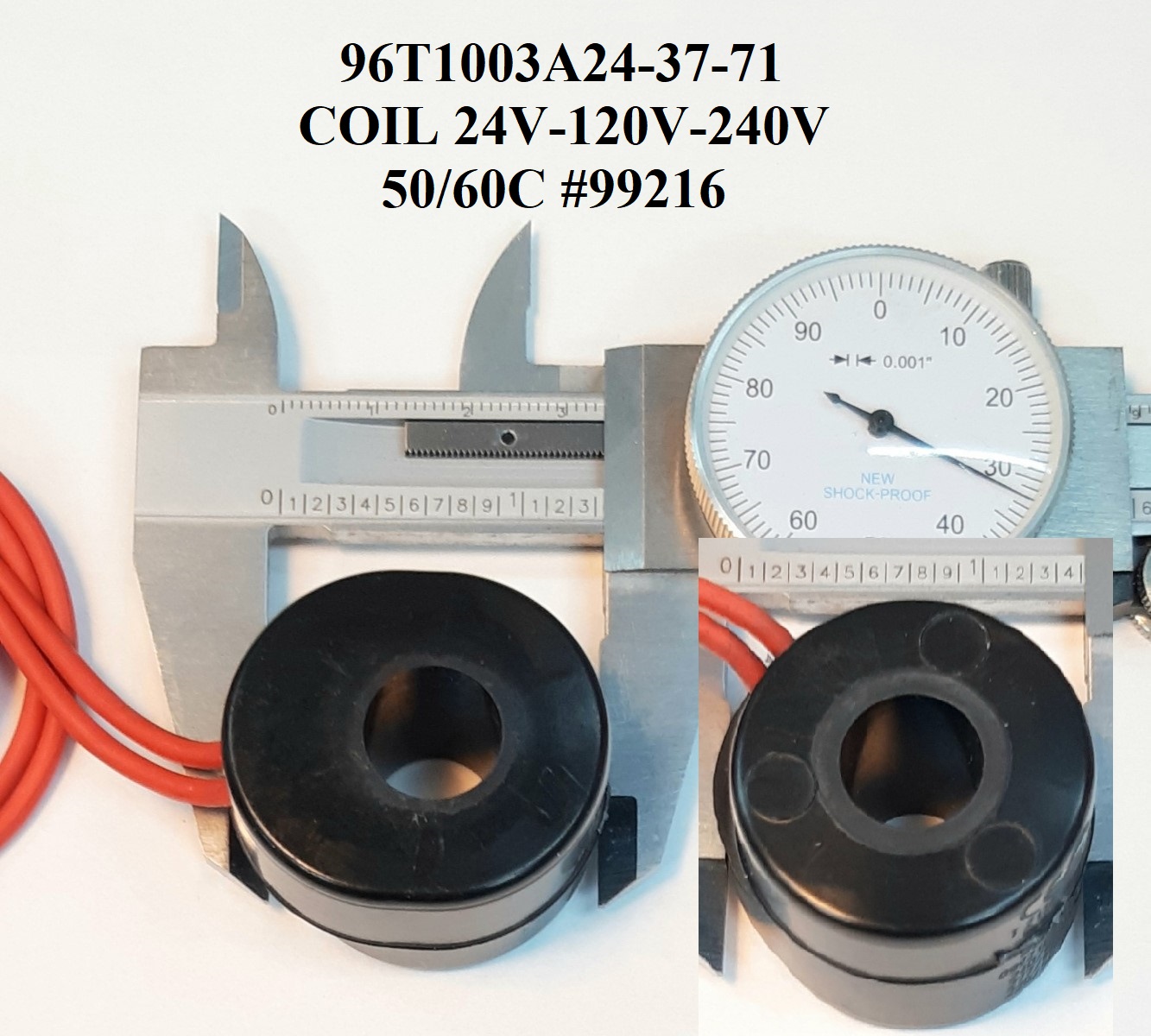

96T1003A24 - 96T1003A37 - 96T1003A71                                    BACK TO CHART
96T1003A24 - 96T1003A37 - 96T1003A71





ACCESSORY PART PICTURES

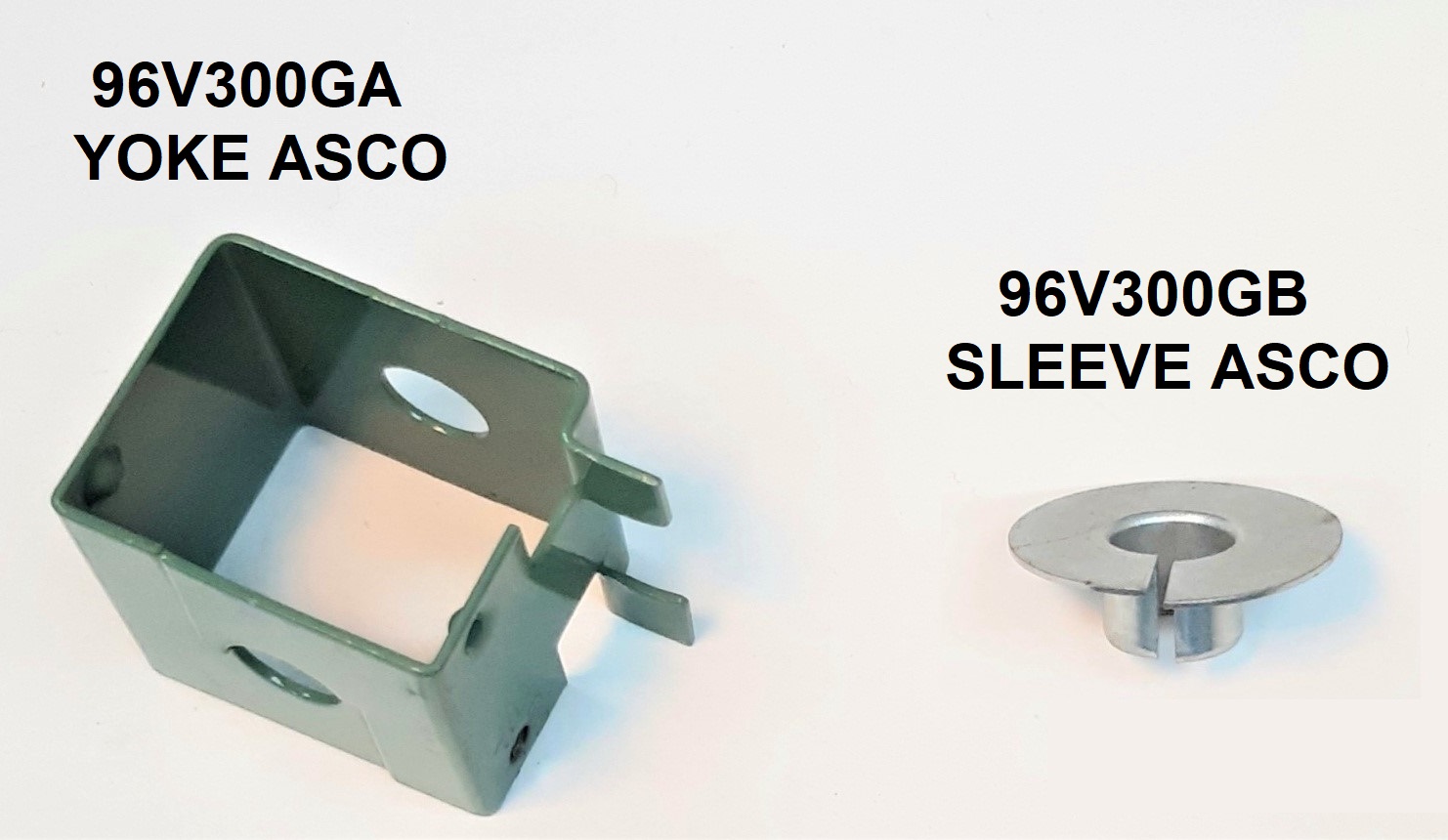

96V300GA / 96V300GB                                                BACK TO CHART
96V300GA - 96V300GB

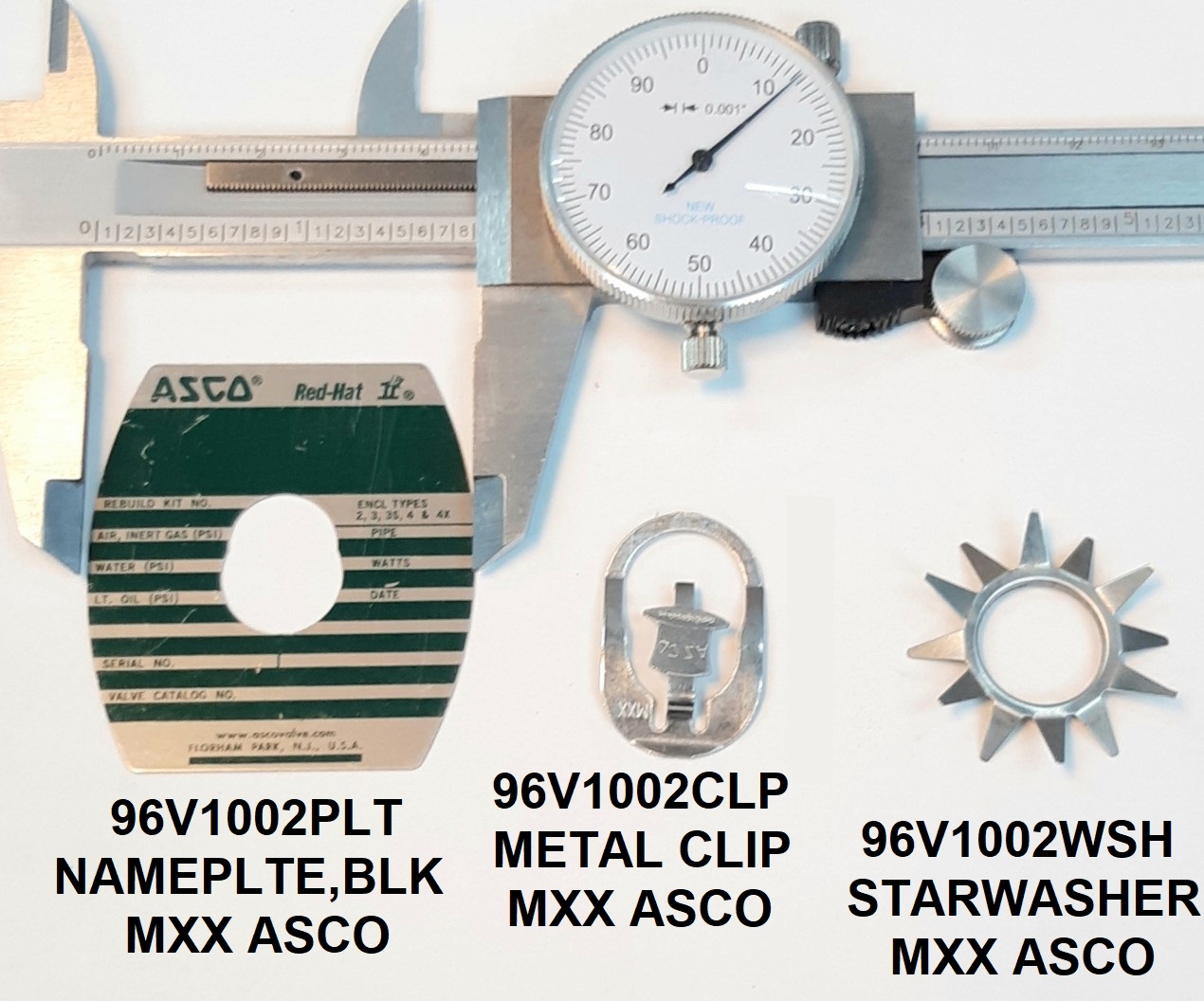

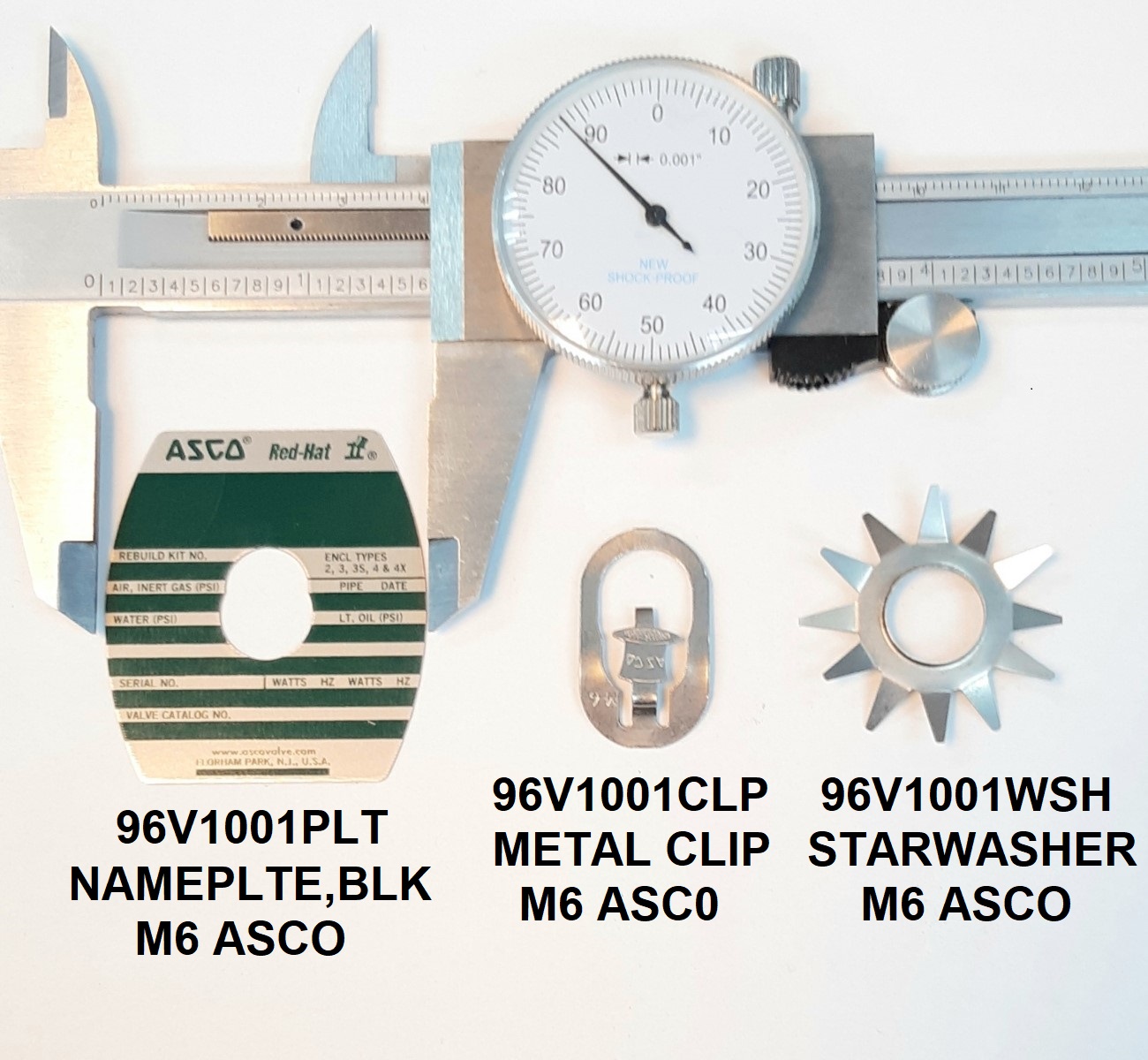

96V1001PLT / 96V1001WSH / 96V1001CLP                                    BACK TO CHART                        96V1002PLT / 96V1002WSH / 96V1002CLP
96V1001PLT / 96V1001WSH / 96V1001CLP            96V1002PLT / 96V1002WSH / 96V1002CLP







REPAIR KITS

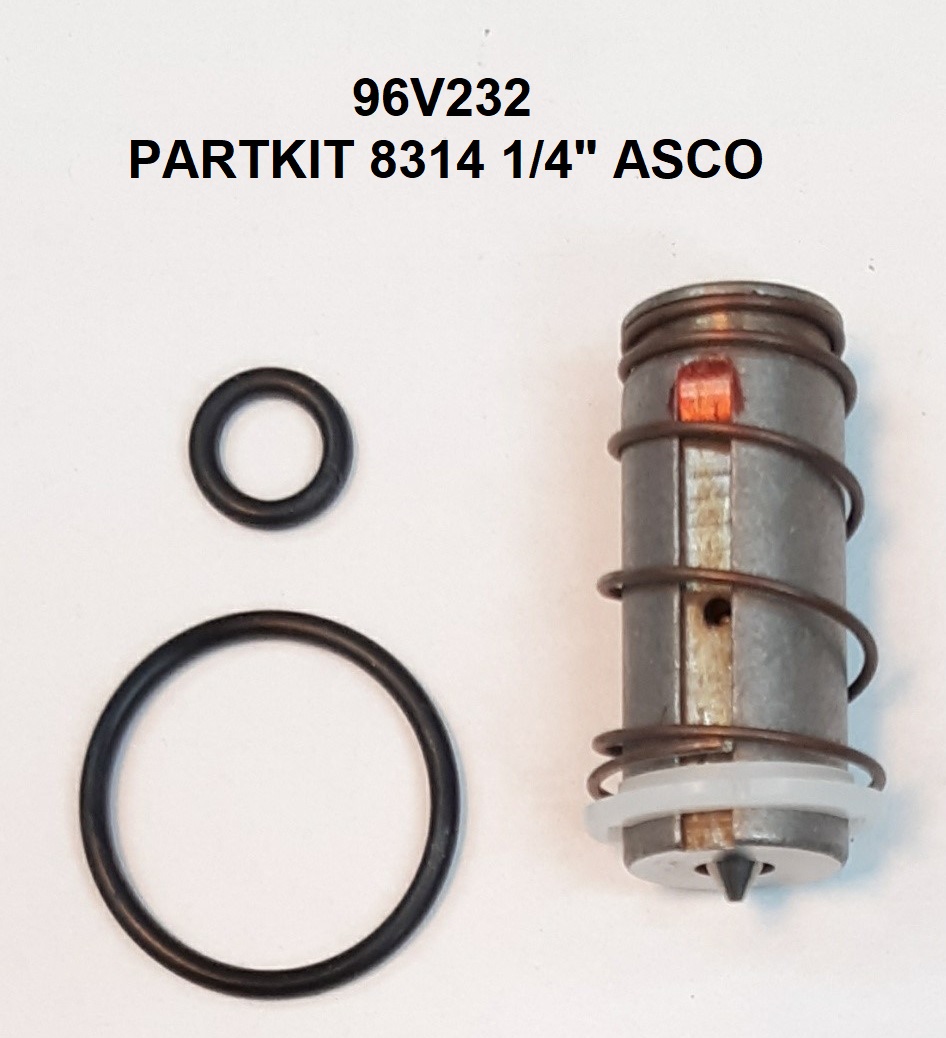

96V232                                                                          BACK TO CHART
96V232

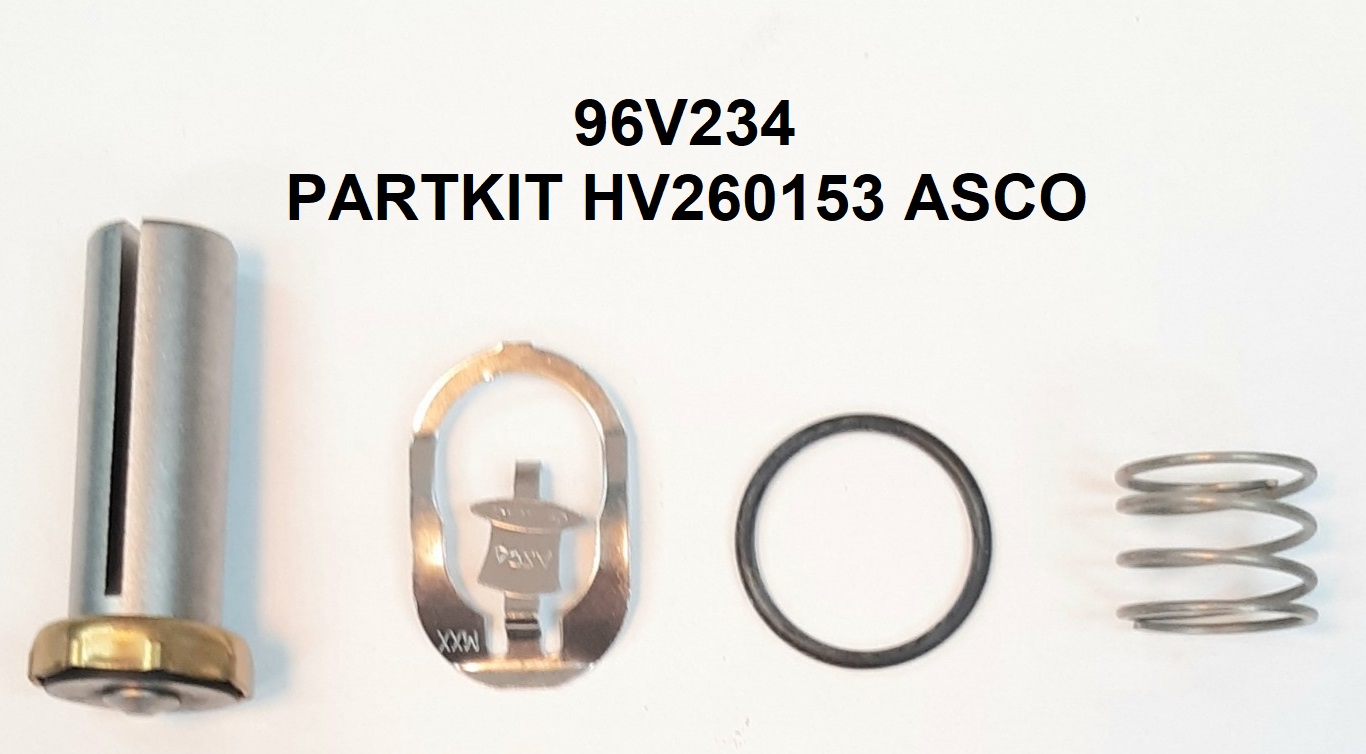

96V234                                                                                   BACK TO CHART
96V234

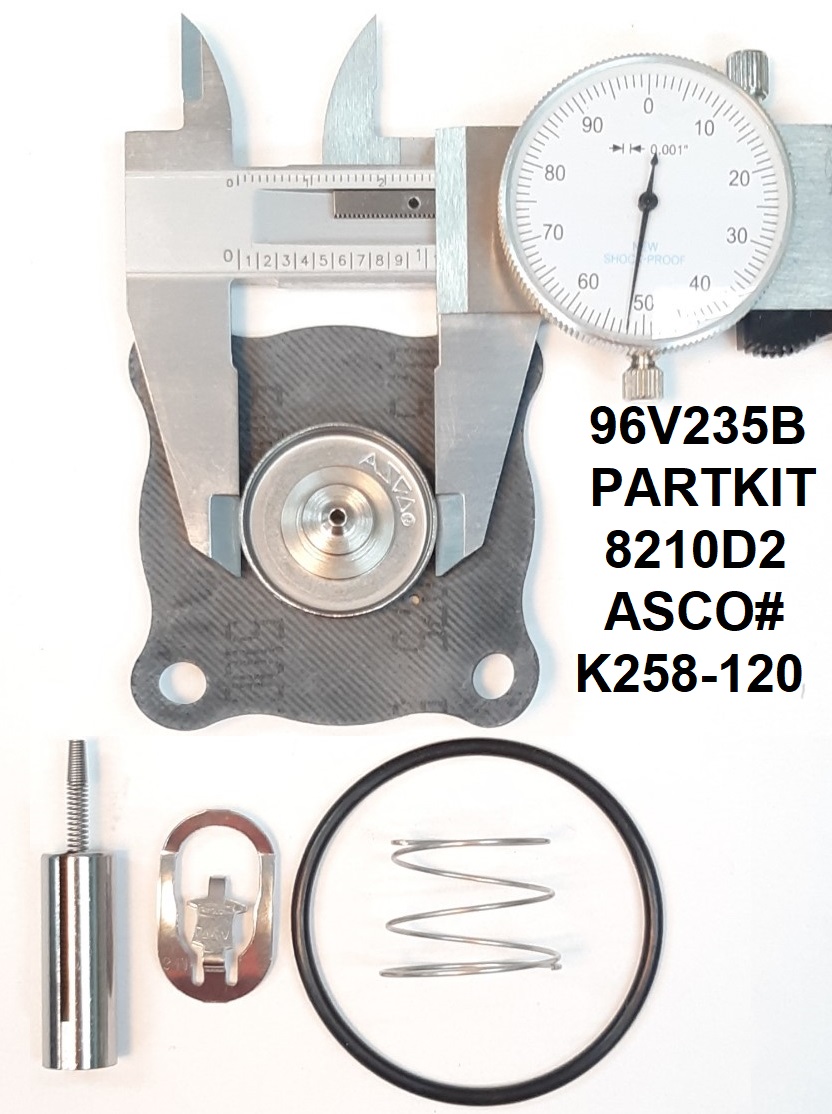

96V235B                                                                   BACK TO CHART
96V235B

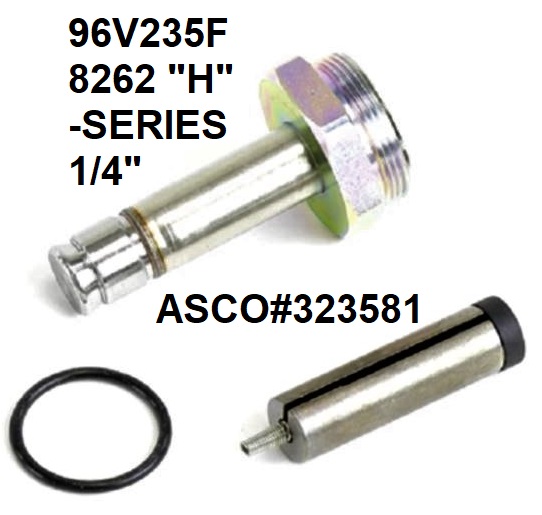

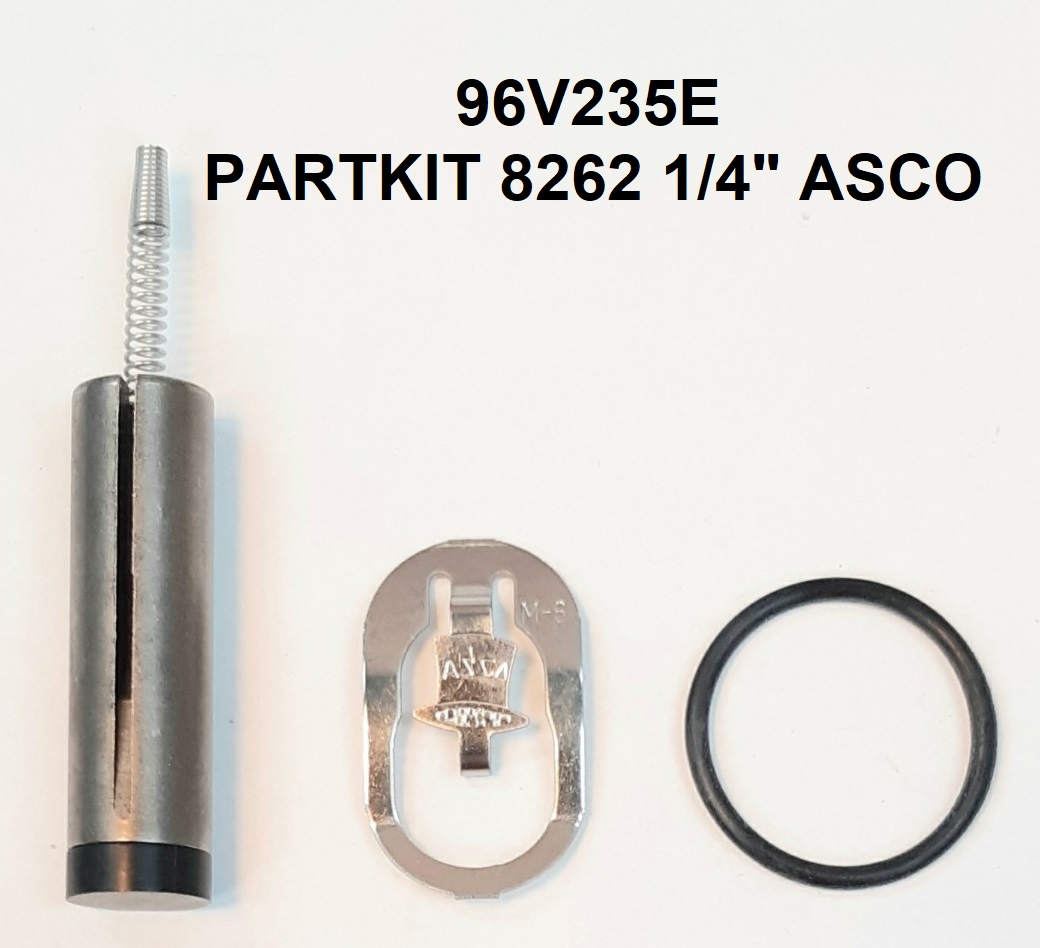

96V235E & 96V235F                                                                                  BACK TO CHART

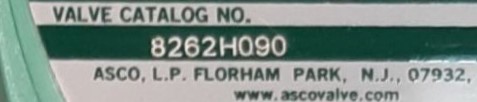

User-added image
                             User-added image
96V235F     96V235E

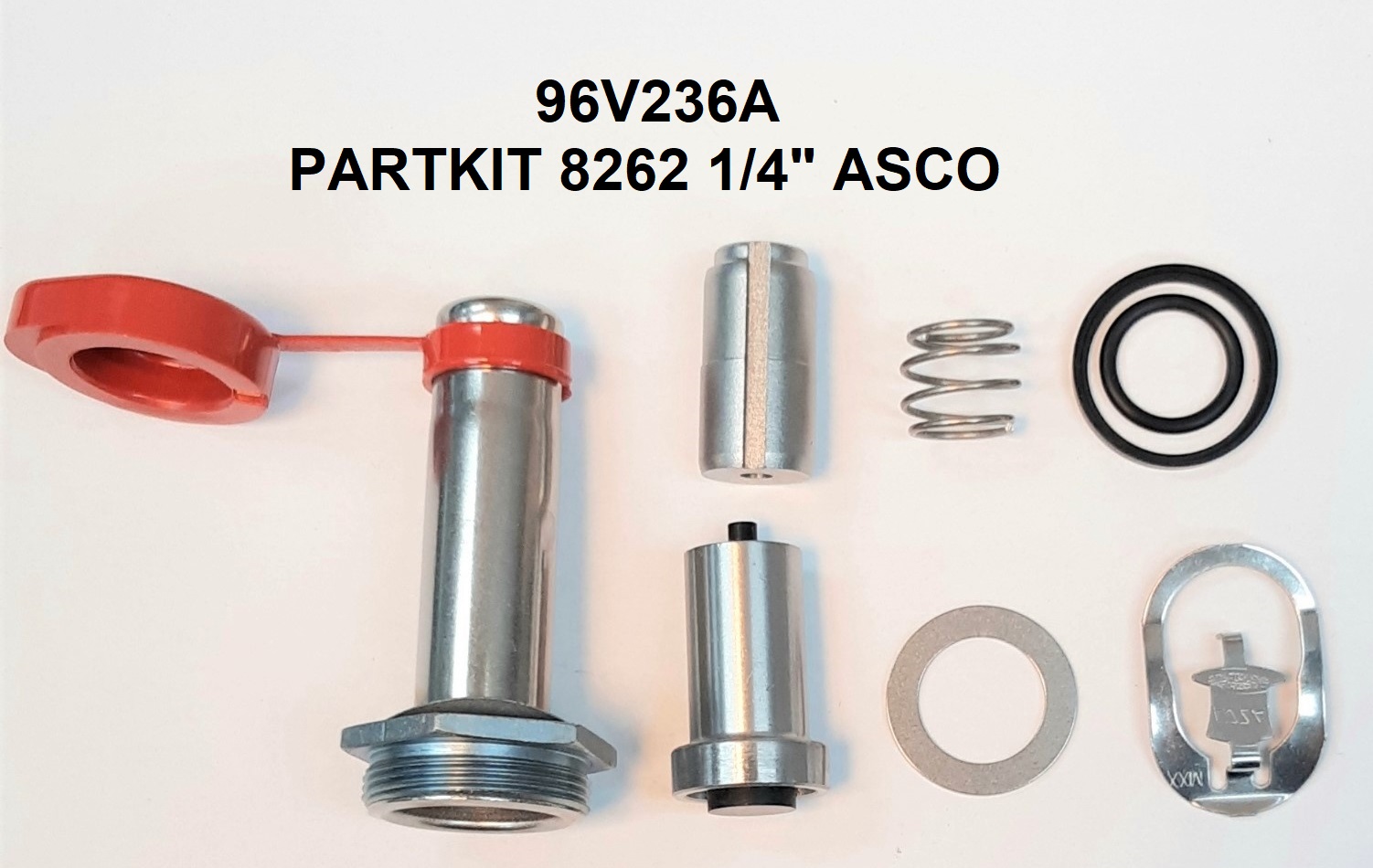

96V236A                                                                             BACK TO CHART
96V236A

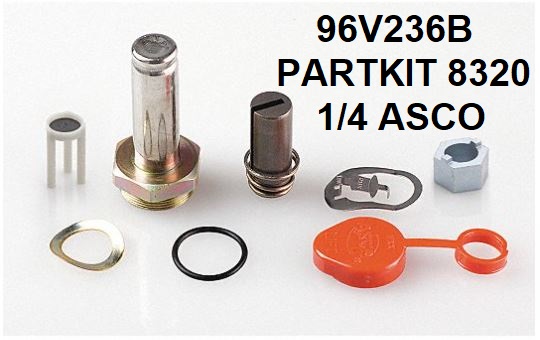

96V236B                                                                   BACK TO CHART
96V236B

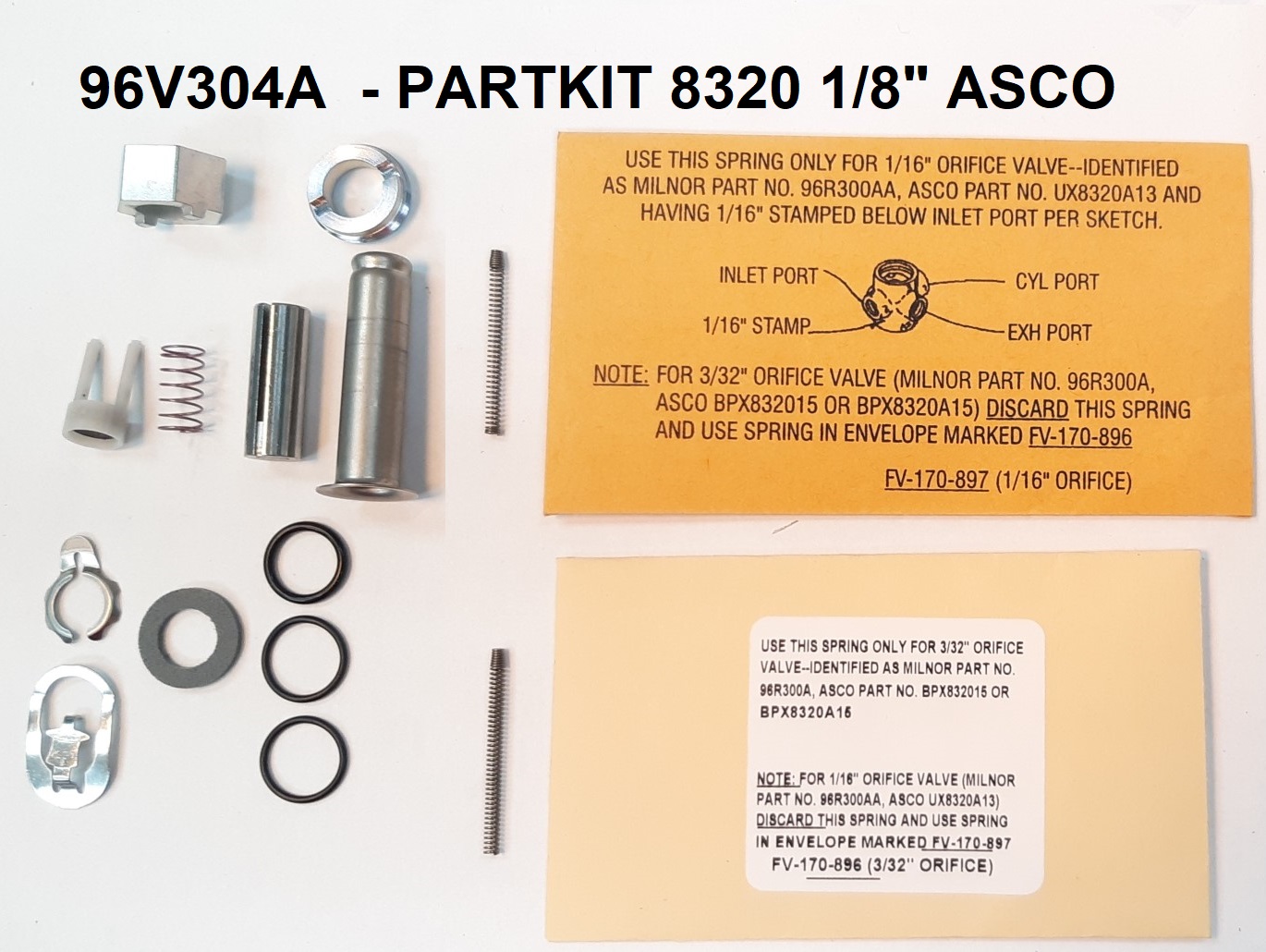

96V304A                                                                 BACK TO CHART
96V304A








LEGACY ASCO REPAIR KITS

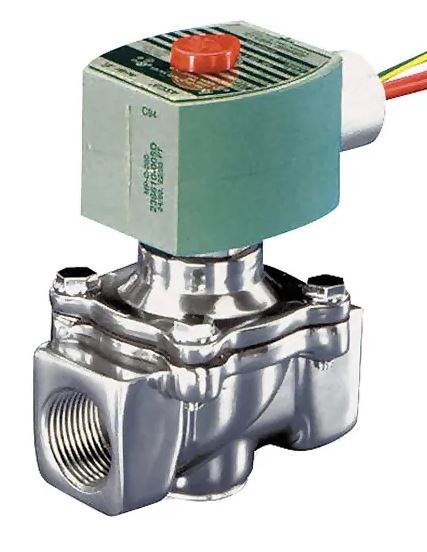

Kit part number 96V235A is used on legacy Milnor valve 96P041 and 96V235 was used on valve part number 96P013.  Neither valve is available any longer.

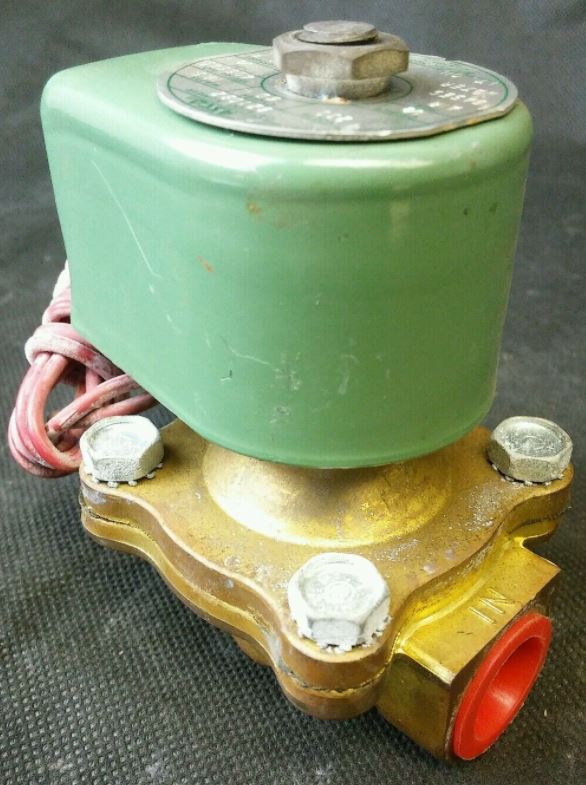

They resemble this valve.  Pictured is the 1/2 inch, 96P013 is the 3/8 inch.  The repair kits are in stock but will not be available after they are sold.
 8210B2

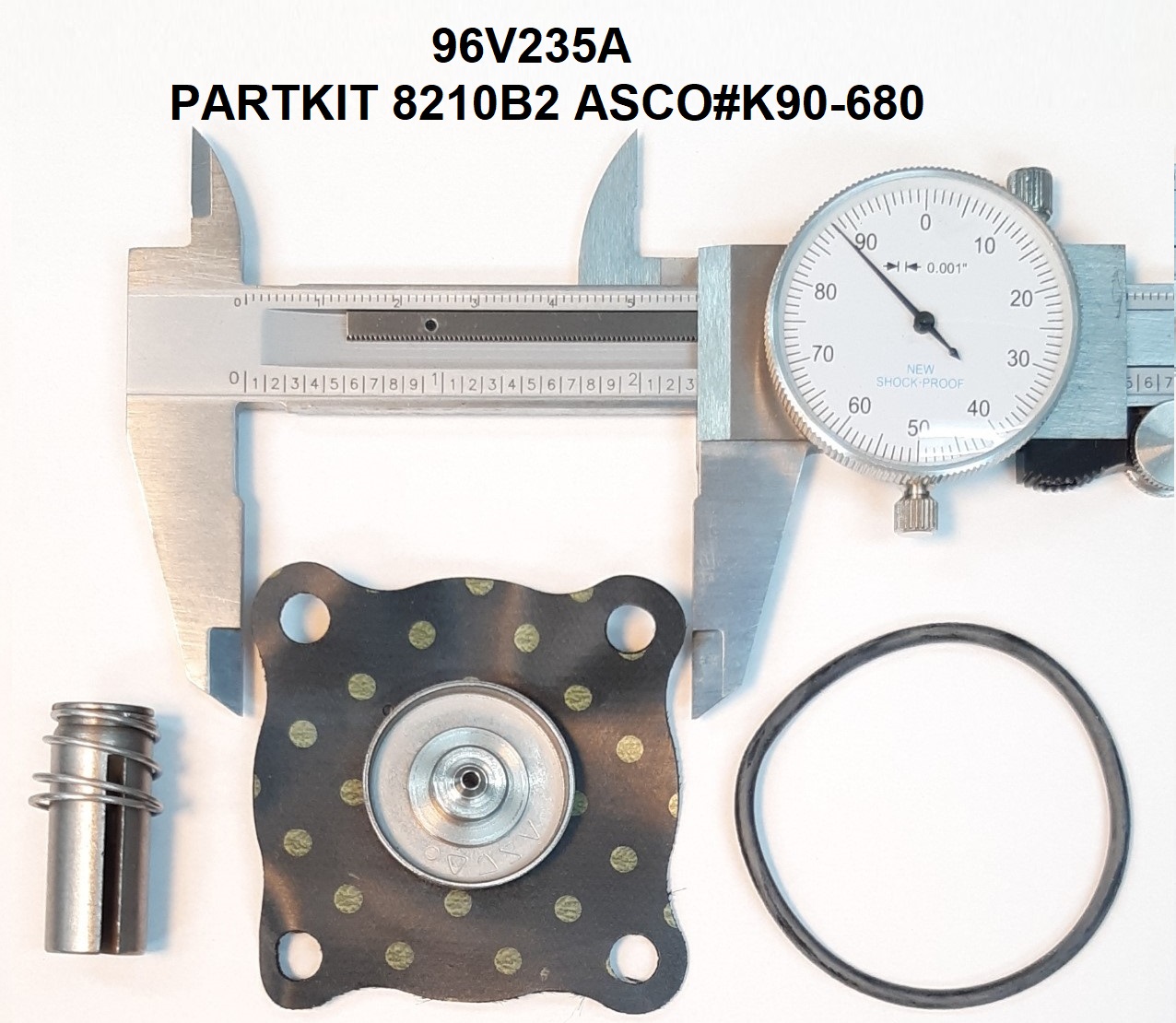

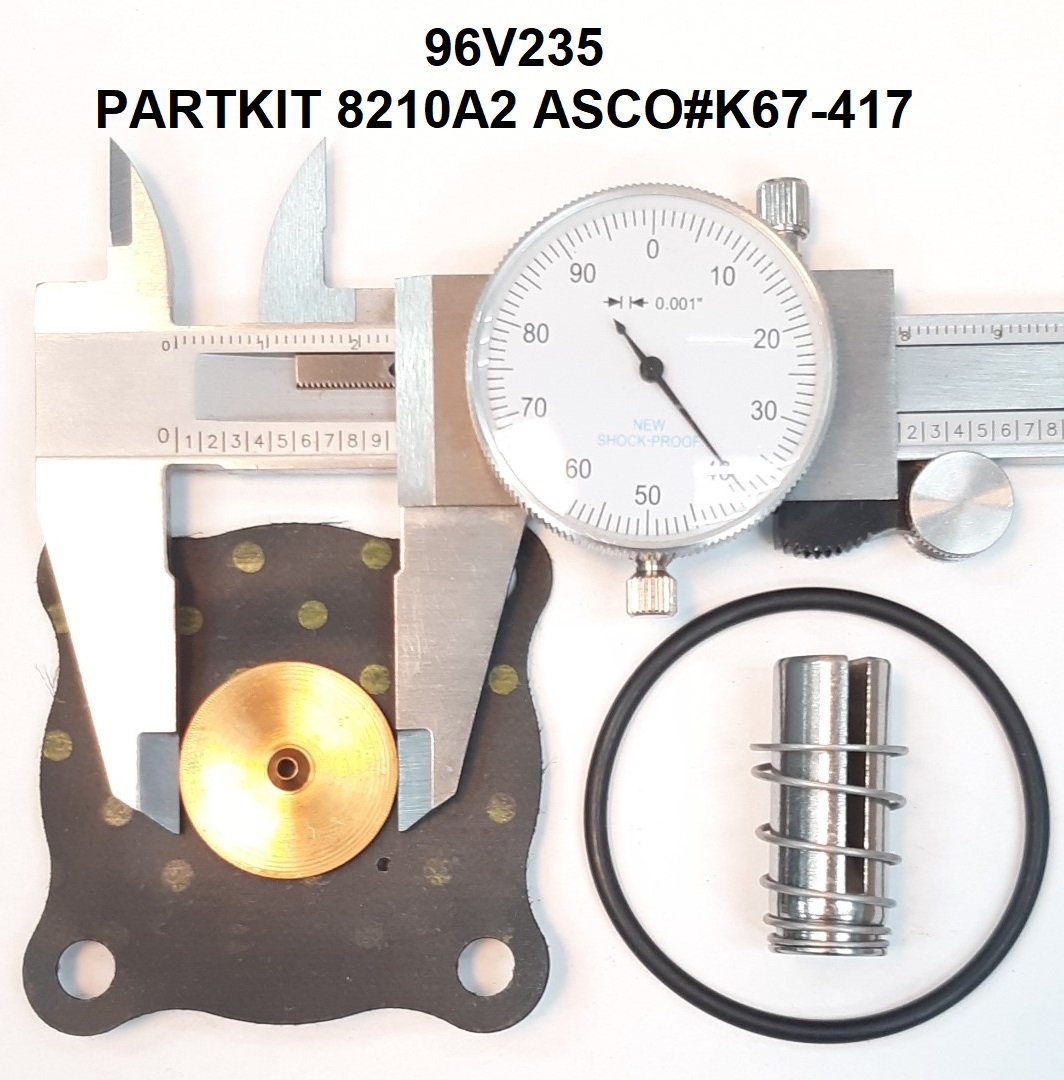

96V235A                                                                              BACK TO CHART
96V235A      96V235

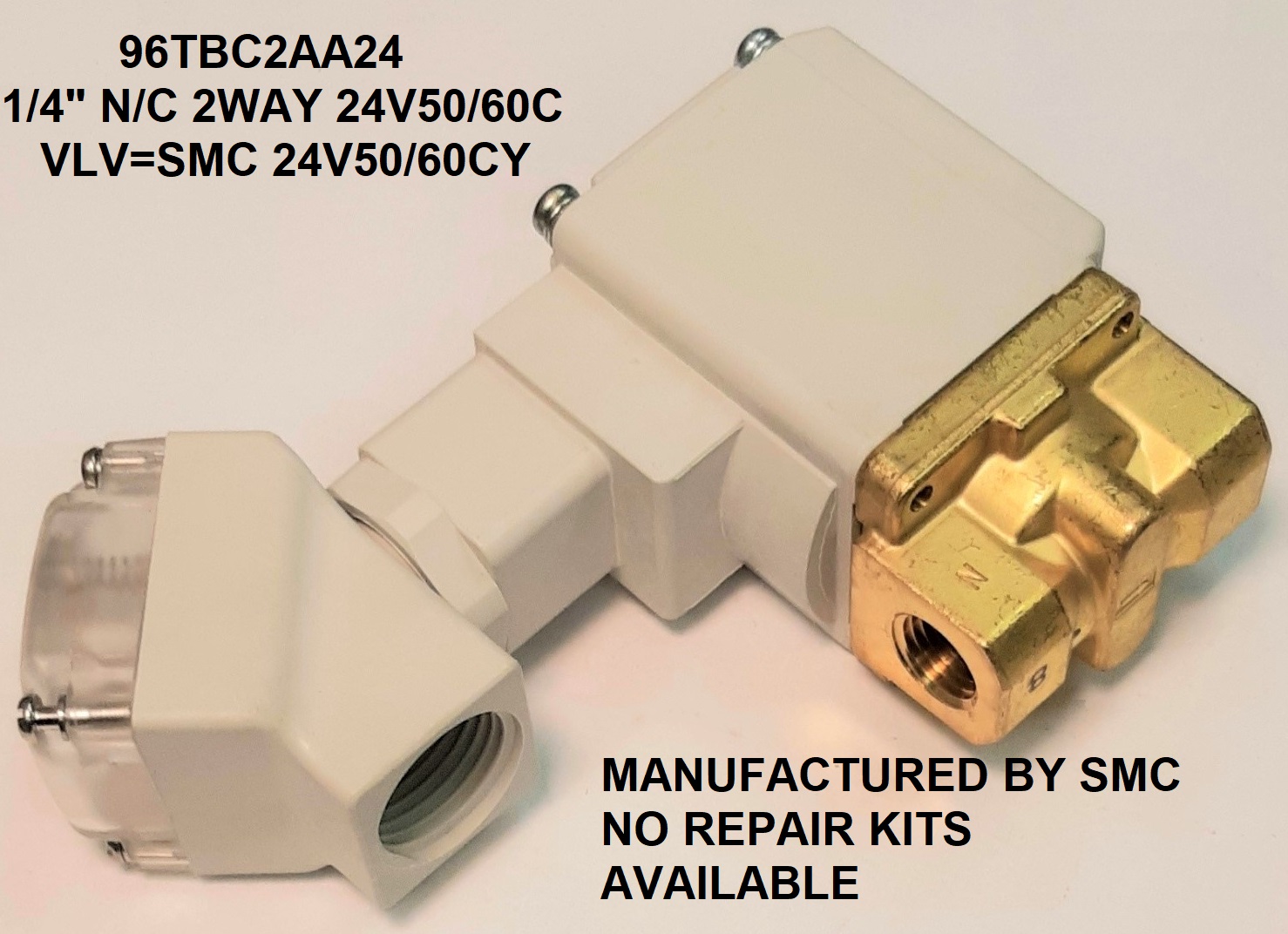

CHANGE TO PART NUMBER 96TBC2AA24
Asco no longer manufactures part number 96TBC2AA24 for Milnor.  Now provided by SMC
The repair kit will work on the ASCO valve but not the SMC valve.  The SMC valve has no repair parts or kit.

User-added image    BACK TO CHART
